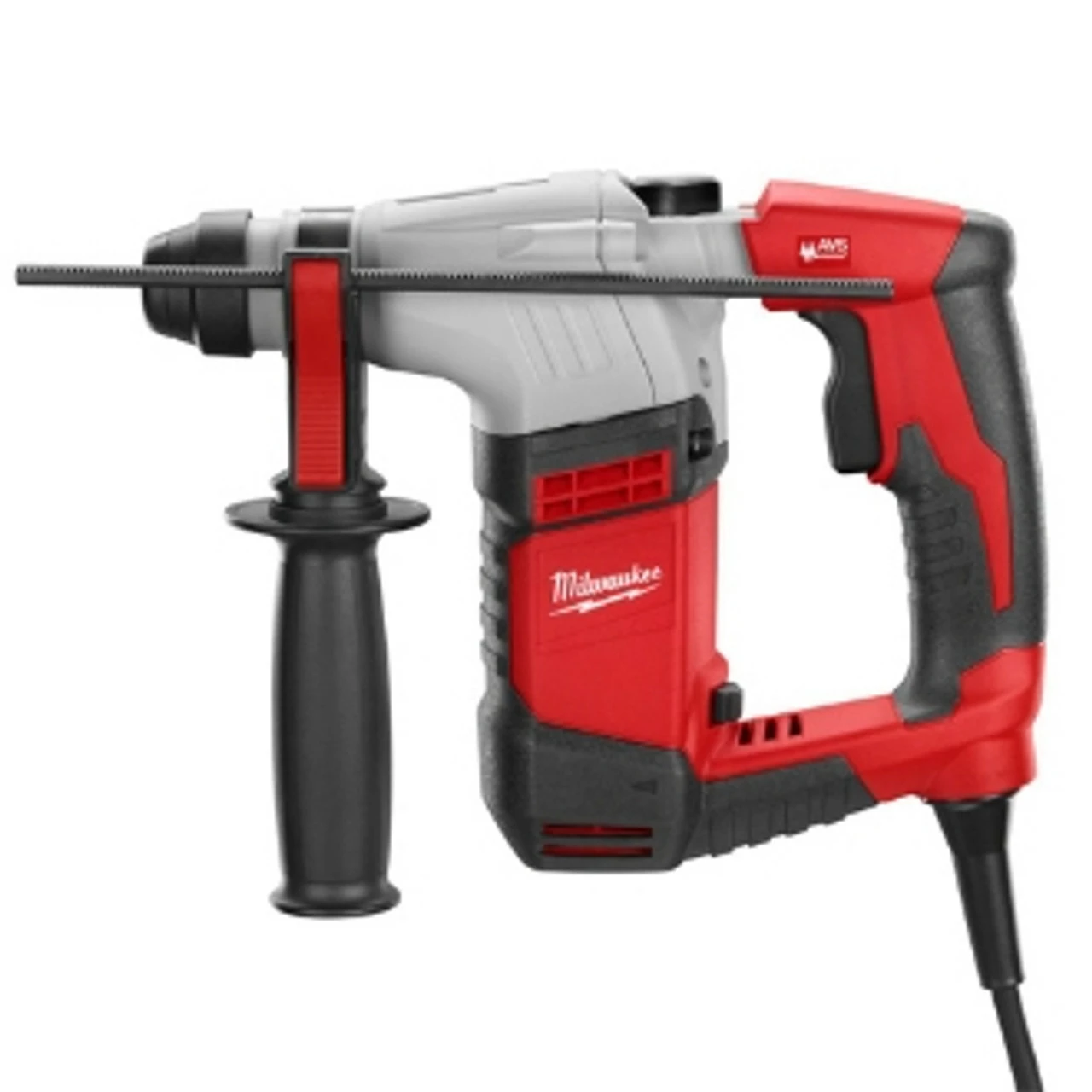

Milwaukee 5/8 in. SDS Plus Rotary Hammer Kit

Model Number: 5263-21

The most compact 5/8 in. hammer drill on the market is 30% lighter and 65% faster with plenty of drilling power. At just 10.9 in. long and 4.6 pounds, Milwaukee Tools 5/8 in. SDS-Plus Rotary Hammer makes drilling overhead and in tight spaces easier, yet it is powerful enough for most professional applications. With a 5.5-amp motor, it delivers 0-3,700 RPM, 0-4,400 BPM and 1.5 ft-lbs of torque. The innovative gear design and a drop motor provide unmatched balance, while Milwaukees unique Anti-Vibration System provides added comfort by minimizing vibration.

A mechanical clutch protects the motor when the bit binds, and two-mode operation offers maximum versatility regardless of the application. The kit includes a side handle, depth rod and carrying case.

Features:

• Powerful 5.5-amp motor: Delivers 0-3,700 RPM, 0-4,400 BPM and 1.5 ft-lbs of torque, providing up to 65% faster drilling speeds
• Lightweight 4.6-lb design: Reduces fatigue when you drill overhead and in horizontal applications
• Compact 10.9 in. profile: Lets you work more efficiently in tights spaces
• 2-Mode operation: Choose rotary hammer or rotation only for added versatility
• AVS Anti-Vibration System: Minimizes vibration for maximum comfort
• Mechanical clutch: Protects the motor when the bit binds

Specifications:

• Length 10-9/10 in.
• Weight 4.6 lbs
• Voltage 120V
• Tool Warranty 5 Years
• No Load Speed 0-3,700
• No Load BPM 0-4,400
• Thin Wall Bit Capacity 2-1/8 in.
• Cord Type Double Insulated
• Electronic Feedback No
• Bit Shank SDS-PLUS
• Blow Energy 1.5 ft-lbs
• Clutch Yes
• Drilling Mode Rotary Hammer and Rotation Only
• Handle Style Drop Motor
• Vibration Reduction Yes
• Cord Length 10 ft.
• No Load RPM 0-3,700
• Amps 5.5
• Trigger Lock No
• Solid Bit Capacity 5/8 in.
• Thin Wall Core Bit Capacity 2-1/8 in.

Includes:

• (1) Carrying Case
• (1) Depth Rod
• (1) Side Handle
